Davies Craig EWP150 & Controller

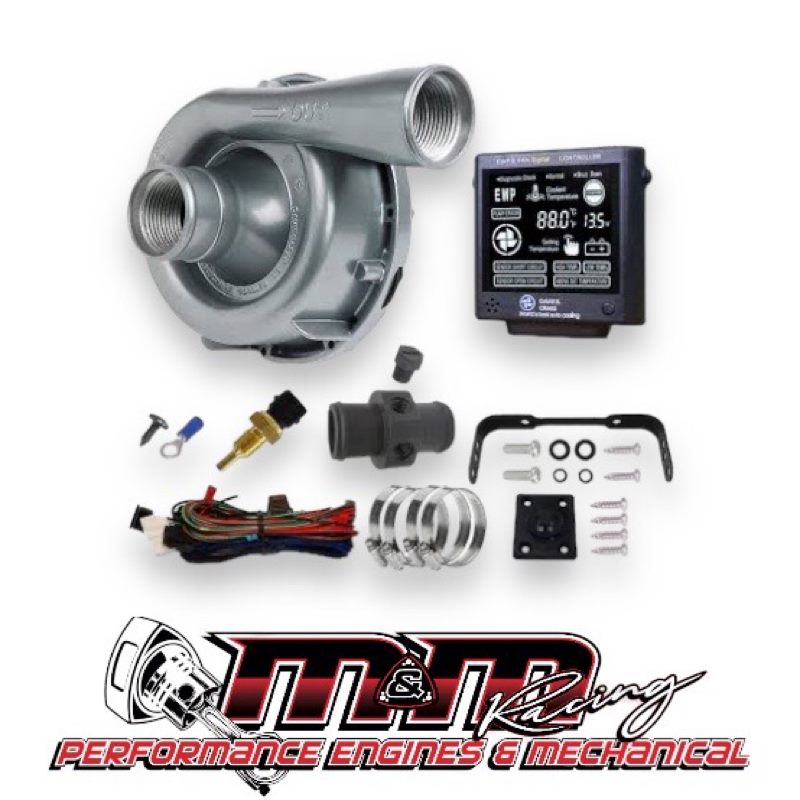

Davies Craig EWP 150 alloy Electric Water Pump and LCD EWP/Fan Digital Controller.

Like all EWPs, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and worked engines which develop excessive heat.

Technical Specifications Voltage 12 Volt Pump Operating voltage 3V DC to 15V DC Maximum current 10A @ 13V Flow rate (max) 150 L/min (39.63 US gal/min) @ 13V DC Operating temp. -40 to 130C (-40 to 266 F) Pump design Clockwise centrifugal with volute chamber Pump weight 1,170 grams (2.6 lb) Pump material Aluminum(Powder Coated) Burst pressure 500 kPa (72.5 psi) Seal Ceramic face seal Self Priming No, none of our pumps are self-priming Fits hose sizes 35mm to 51mm Inlet & Outlet -16AN

The updated V2 LCD Digital Controller now has two specific functions. This unique Controller will now manage the operation of the EWP by varying the speed of the EWP in response to the temperature of the engine and manage control of your electric engine fan. The Controller has a push-button on the facia panel that offers target temperatures from 40C (104F)to 110C (230F).
