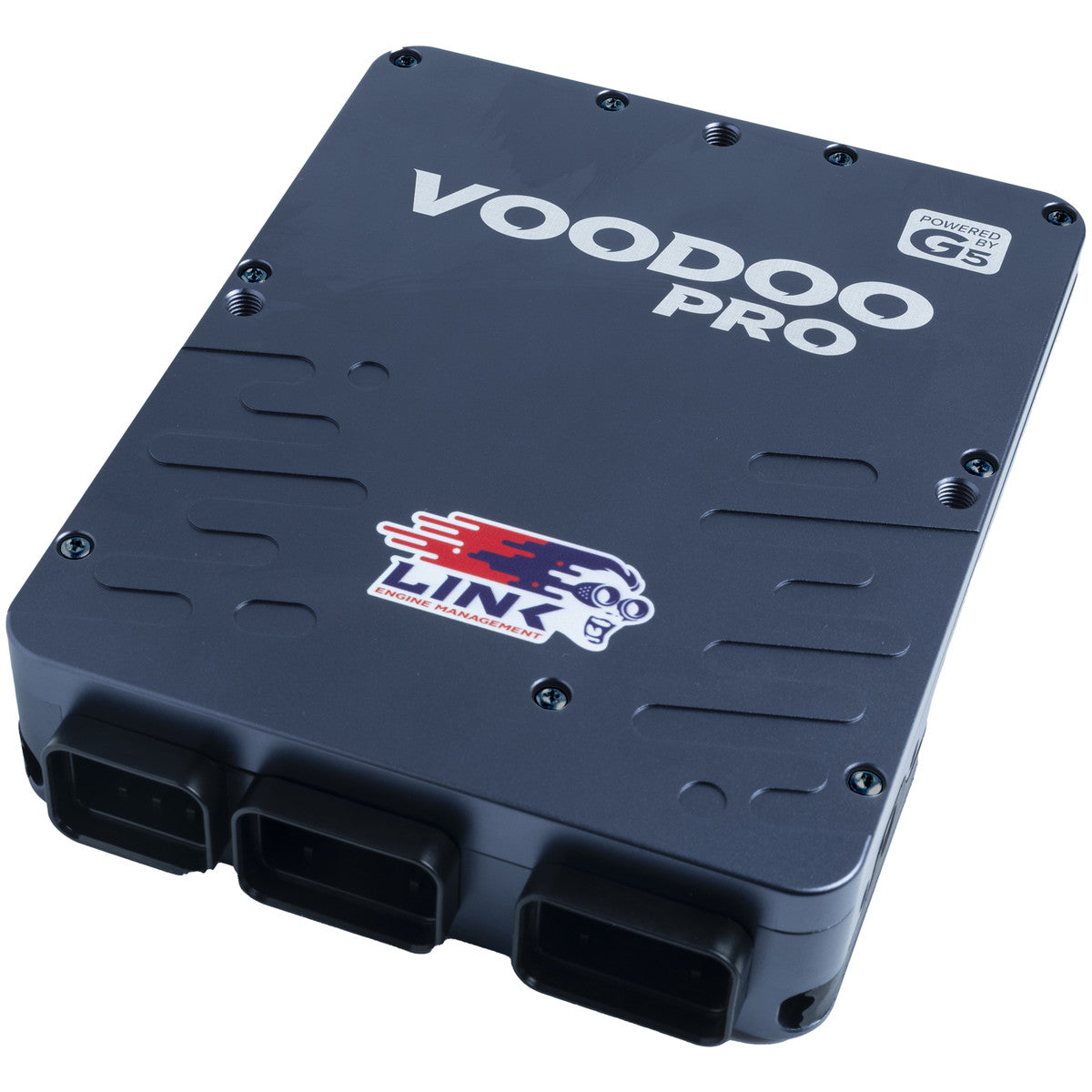

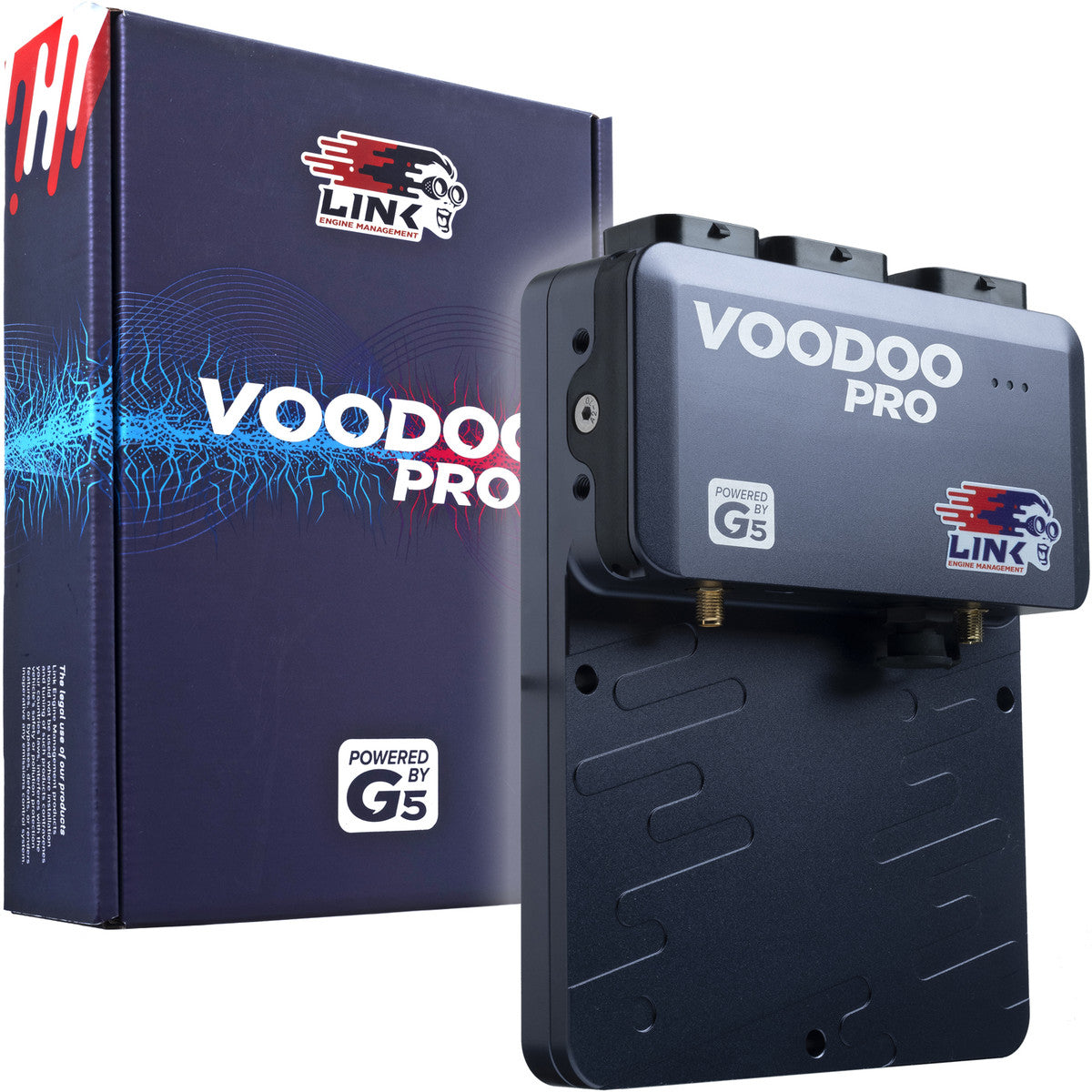

G5 Voodoo Pro

G5 Voodoo Pro puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, more injector and ignition drives, advanced communications and many more features.

With 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total) the G5 Voodoo Pro can run up to:

• twelve cylinders or six rotors with sequential injection and direct spark, or
• eight cylinders with staged injection and direct spark.

The G5 Voodoo Pro is the perfect choice for professional level motorsport

Features:

• Built-in WiFi, with real-time PC Link connection
• Built-in Global Positioning System (GPS) up to 50Hz
• Dual onboard Digital Wideband Lambda controllers
• Dual onboard E-throttle (Drive by Wire)
• 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total)
• Dual microcontrollers
• Direct Injection (DI) on up to 12 injection drives (using an external OEM or aftermarket driver box - more info on working with DI here)
• Link CAN Files - Create your own separate CAN files with additional streams and channels, which can be saved, locked and shared
• Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)

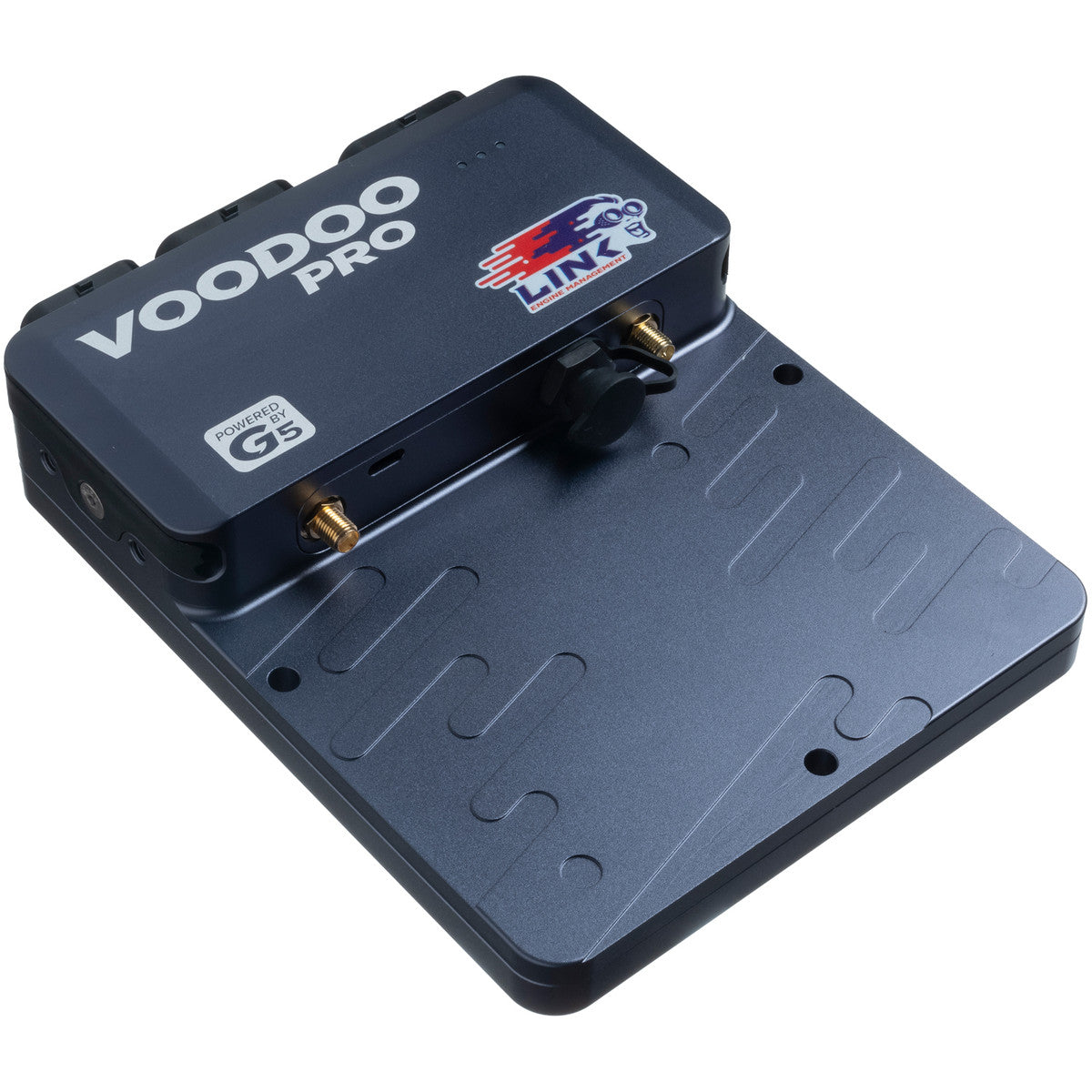

• Flexible mounting options - Fix to a face using the three top-down through-holes with M5 or 3/16 socket screws, or hang the ECU from a dash bar or similar using custom brackets and the four M4 side mounting points.

Requires “A”, “B” & “E” connector kits (not supplied).
