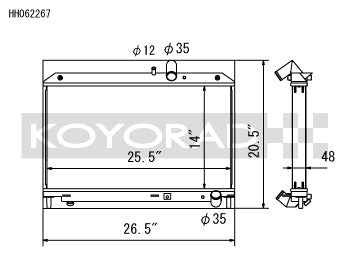

Mazda RX8, 09-11, 48mm

HH Series 48mm Radiator Core

Features:

• Precise Tube and Fin Alignment: Construction under strict quality control and solid boxing result in tubes with optimal coolant flow and fins with highly efficient heat transfer.
• Nocolok Brazing: Tubes, Fins, Headers, and Brackets are brazed in a state-of-the-art Nocolok furnace, bonding all components to resist damage from vibration, road debris, and the elements.
• Billet Filler Neck: Precision machined billet filler necks are incorporated on each Koyo radiator for strength, durability and better sealing.
• OE Specific Mounting: Koyo incorporates application-specific mounting locations for all fan shrouds, inlet/outlet hoses and top/bottom mounting pins, ensuring quick and pain-free installs.
• Hand Crafted Heliarc Welds: Each Koyo Alloy Race Radiator is Heliarc welded individually by hand. This creates the strongest aluminum to aluminum bond to mate all components.

Fitment: 2009-2011 Mazda RX-8 (will not fit 04-08 models)

Note: Automatic vehicles will require external transmission cooler

Note's:

This radiator will work for 2004 to 2008 RX8's by simply cutting the two lower mounting pins shorter. the 2004 to 2008 mounting pins are about 20 mm shorter then the 2009-11 version.
